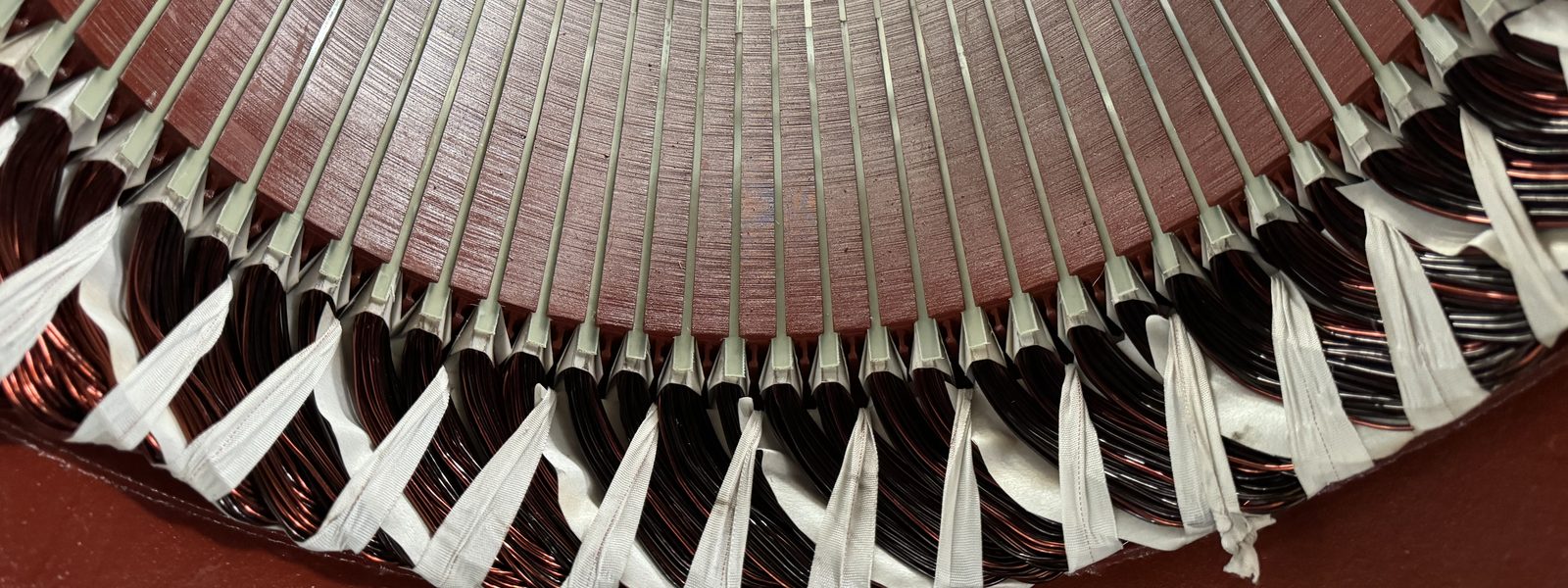

Rewound electric motor stator at GMEC Electrical

Your Motor Rewinding Center

Service & repair of LV/HV motor, gen set and transformer — backed by fully equipped facilities, overhead cranes, press and dynamic balancing capability.

Overhead Crane
Overhead Cranes
20 Tons   10 Tons
Press
100
Ton Press
Dynamic Balancing Machine
6 Ton
Dynamic Balancing Machine
Service & Repair of LV/HV Motor, Gen Set, Transformer

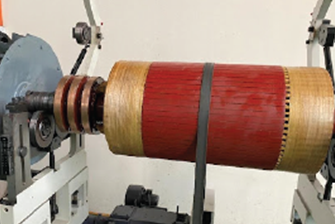

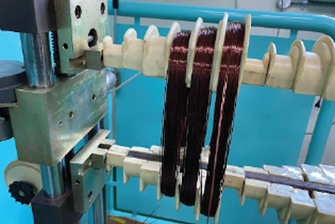

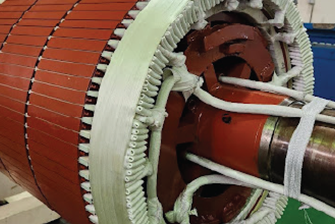

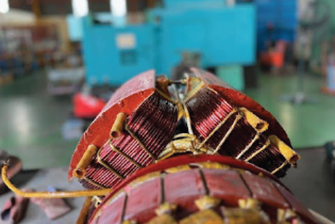

Motor Rewinding 1 Motor Rewinding 2 Motor Rewinding 3 Motor Rewinding 4

Training & Seminars

Benefits from GMEC repair services:

GMEC training center provides both theory and hands-on training tailored to customers' needs.

Motor Assembly

Your one-stop solution for drive system assembly. GMEC provides expertise and critical equipment and facilities to assemble.

Commissioning Service

  • Trouble-free and smooth production from the very beginning.
  • All possible mounting errors will be rectified before production starts, thus no unplanned shutdown.
  • Proper start-up service reduces unnecessary discussion about warranty issues.
  • Makes troubleshooting easier in future problems due to available reference vibration data.

Condition Monitoring Service

GMEC provides information on:

  • Condition of motor components such as bearings, rotors, coil, etc.
  • Condition of both DE & NDE.
  • Necessity for re-alignments, rebuild of foundation, etc.
  • Estimation of motor's life time expectancy.

Troubleshooting Service

GMEC provides information such as:

  • Behaviour of electric motors during operation (vibration and temperature).
  • Original condition of the motor compared to current condition.
  • All possible root causes for the problems.
  • Estimation of the motor's expected life time.

Dynamic Balancing Service (5.5 ton)

"State of the art" Schenck dynamic balancing machine (5.5 ton):

  • Precision accuracy and maximum flexibility for universal application.
  • Range of huge components for dynamic balancing including:
  • Rotors, armatures, fans, pumps, impellers, etc.

Overhaul & Rewinding Services

Some important processes:

  • Insulation resistance test and drop voltage test to be carried out.
  • Thorough inspection to be carried out. Stator winding to be cut out properly.
  • Burn out motor insulation in electric oven before burnt stator coils stripped.
  • Steam cleaning the stator, rotor using chemical jet washer.
  • Bake dry stator, rotor, etc.
  • Mechanical measurement to be carried out.
  • High class copper wire and insulation material to be used for rewinding.
  • Insulation, surge comparison and other critical tests to be carried out.
  • High class varnish to be used to treat stator before oven baking proceeded.
  • Dynamic balancing to be carried out if necessary before motor assembly.
  • No load test to be carried out and FAT to be conducted by client.
  • Service report with testing data to be provided upon motor delivery.

Your Motor Rewinding Partner

Let's discuss your industry needs. Get in touch with us today!
